Automatic Trapezoidal Sheet Roll Forming Machine Galvanized GI / PPGI Materials

Name: Automatic Trapezoidal Sheet Roll Forming Machine Galvanized GI PPGI Materials
Brand: SHIBO
Price: 8000 USD

Best Automatic Trapezoidal Sheet Roll Forming Machine Galvanized GI / PPGI Materials wholesale

Brand Name : SHIBO

Model Number : 914 Model

Certification : CE , ISO

Place of Origin : CHINA

MOQ : 1 Set

Price : $8000-11000 per Set

Payment Terms : L/C, T/T, Western Union

Supply Ability : 15 Sets per month

Delivery Time : 30 working days

Packaging Details : the packing of machine is container or according to the needs of the customer

Usage : Roof and Wall panel

Materials : PPGI/GI

Roller materials : 45# Steel with chrome coated

Cutting blade material : Cr 12 High Grade Steel

Machine color : can do based on you need

Roller Station : 15-18 Station

Feature : Easy operate

After service : We provide one year warranty

Contact Now

GI / PPGI Automatic Galvanized Trapezoidal Sheet Roll Forming Machine

Product Description

The tiles produced by this GI / PPGI Automatic Galvanized Trapezoidal Sheet Roll Forming Machine are widely used in all kinds of factories, houses, warehouses and simple steel shed, and with beautiful appearance, high efficiency and reliable working.It consists of feeding platform, main molding core, shearing mechanism, hydraulic station, computer control cabinet, high precision counter and so on.

Adjustable Roof Sheet Roll Forming Machine Usage:Put the raw material(steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate angle iron.

1.Suitable material	Color steel sheet galvanized steel sheet,aluminum sheet
2.Installation Dimension(LWH):	6.5m1.5m1.4m
3.Main motor power	4KW with Cycloidal reducer
4.Hydraulic station power	3KW
5. Hydraulic oil pump	CB-E 310
6.Thickness of material	0.2mm~0.8mm
7.Diameter of principal axis	Φ70mm
8.Material expand width	1000,1200,1250mm
9.Electric tension	380V 3phase 50HZ or as the customer's requirements
10.Material of roller	High grade 45# forged steel plated with hard chrome plating
11.Controlling system	PLC
12.Processing speed	3-6m/min
13.Processing precision within	1.00mm (depend on design)
14.Material of cutting blade	Cr12 mould steel with quenched treatment
15.Kind of drive	0.6 inch chain link bearing model 6210
16.Roller station	8-20 Rollers
17.Roller material	high grade 45#steel; Cr12 quenching
18. Leak frame load-bearing	4.6T

Application

This GI / PPGI Automatic Galvanized Trapezoidal Sheet Roll Forming Machine wide application. It produce building material so It is usually use for construction. To be more precise that's widely used in various industrial factory ,beauty spot, holiday village building, hotel,exhibition ,easy steel building manufacturing ,and have features such as nice appearance and durable.

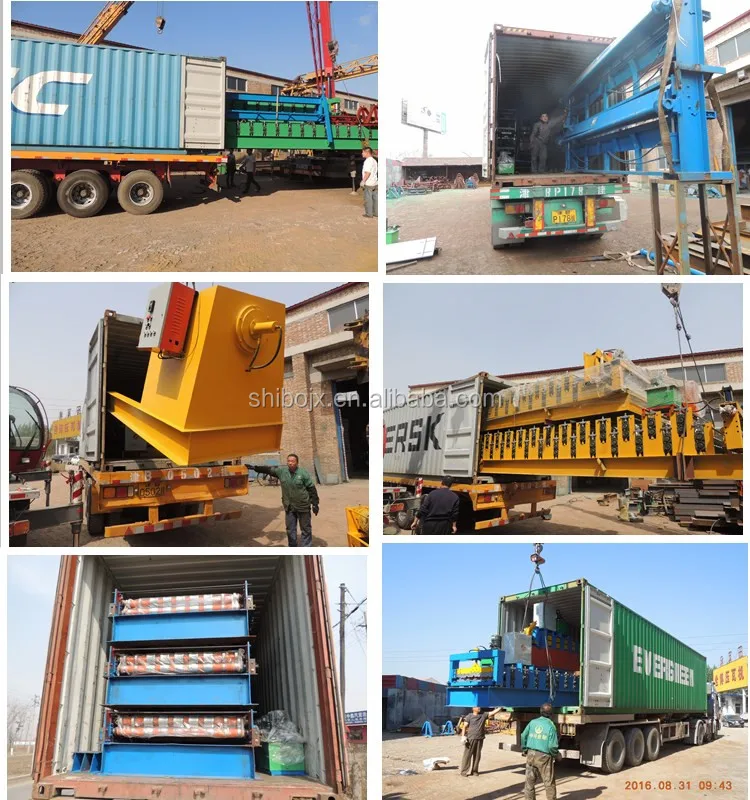

Packaging & Shipping

GI / PPGI Automatic Galvanized Trapezoidal Sheet Roll Forming Machine package: nude, the computer controlling part is packed with water proof cloth. Adjustable Roof Sheet Roll Forming Machine packed 20 feet container, it fit for ocean shipping. we have good relationship wih the shipping agent to get good freight price for you and you can also find yourself at your side.

Automatic Trapezoidal Sheet Roll Forming Machine Galvanized GI / PPGI Materials

Working Flow:

GI / PPGI Automatic Galvanized Trapezoidal Sheet Roll Forming Machine: Decoiler-------Feeding-------Roll forming-------Cutting------Finished product

1. GI / PPGI Automatic Galvanized Trapezoidal Sheet Roll Forming Machine Uncoiler:

Usage: It is used to support the steel coil and uncoil it in a turnable way. The steel coil is uncoiled by hand.

Loading capacity: 5T

Inner diameter: 500-508mm

Automatic Trapezoidal Sheet Roll Forming Machine Galvanized GI / PPGI Materials

2.GI / PPGI Automatic Galvanized Trapezoidal Sheet Roll Forming Machine Feeding Table:

Put the raw material (steel plate) through the beach to manufacture and process, it can guarantee that the products are neat. Parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate angle iron.

Automatic Trapezoidal Sheet Roll Forming Machine Galvanized GI / PPGI Materials

3.GI / PPGI Automatic Galvanized Trapezoidal Sheet Roll Forming Machine Hydraulic System:

Power: 4KW, Hydraulic oil:40#.

Hydraulic oil into the hydraulic oil tank, the pump drives the cutter machine to begin the cutting job.

Automatic Trapezoidal Sheet Roll Forming Machine Galvanized GI / PPGI Materials

4.GI / PPGI Automatic Galvanized Trapezoidal Sheet Roll Forming Machine Shearing Mechanism:

It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products. Material of blades: Cr12, quenching treatment.

Automatic Trapezoidal Sheet Roll Forming Machine Galvanized GI / PPGI Materials
