Steel IBR Roof Trapezoidal Profile Sheet Cold Roll Forming Machine 1000
1. Usage and introduction of this production line
The complete Steel IBR Roof Trapezoidal Profile Sheet Cold Roll Forming Machine 1000 line includes manual decoiler, main body of roll forming machine, hydraulic cutting system, PLC control system and discharge table. This machine line can work automatically by PLC control system. It is easy to operate and running stably. Our client from Oman bought this machine, and it is used in Saudi Arabia.
2. Components of the roll forming production line
(1) Manual Decoiler
Un-powered, manual control
Max Feeding width: 1220mm,coil ID range 508mm±50mm
Bearing Capacity: Max. 5 Ton
Weight: 180kgs
(2) Main body of machine
| Feeding material | Color steel plate |
| Frame type | steel board welded |
| Width of the plate | 1220mm |
| Thickness of the plate | 0.3-0.8mm |
| Dimensions | 6500mm*1600mm*1200mm |
| Diameter of the shaft | Φ75mm |
| Roller station | 16rows |
| Productivity | 8 - 12m/min |
| Drive mode | A / C motor |
| Motor power to drive the machine | 5.5 + 4kw |
| Voltage | 380V 50Hz 3phase |
| Weight | 4200kgs |
| Material of the cutting head | Gr12 , heat treatment HRC58-60 |
| Machine frame | 350 H steel |
| Side board thickness | 16mm |
(3) Hydraulic Cutting device
It is controlled by gear wheel oil pump.
After filling the hydraulic oil into the hydraulic oil tank, the pumps drive the cutter machine to begin the cutting job.
(4) PLC Control System
The target piece’s length is adjustable and digit of it can be adjusted. You can devide which brand of PLC and inverter to use, Delta, Siemens or Achievement.
Computed mode has two Modes: automatic one and manual one. The system is easy to operate and use.
It contains programmer, transformer for the electronic machines and kits of every part.
Language screen:Chinese,English or Russian language .
(5) Discharge table
Un-powered, manual type
Function: collect the finished products
Dimension: 4000mm*1200mm*700mm
Weight: 80kgs
3. After-sales service
Our machines have one year guarantee, within one year, if the machine parts has some problem, we will be in charge of the repairing or replace. Also we will deliver the customer some spare parts together with the machine when loading the machine.
4. FAQ
Q1, We bought your roll forming machine line, but we couldn't install and debug it?
A1, Don't worry about that, when finished the machine, we will send you the manual book which shows you how to use the machine; if you still don't know, we can record a video to teach you how to operate the machine.
Q2, About the after service, if the machine has problem out of guarantee?
A2, All the machines are one guaranteed, life maintenance. It means if you order our machine, you will be our customer for lifetime, you can ask us anytime about the machine issues.

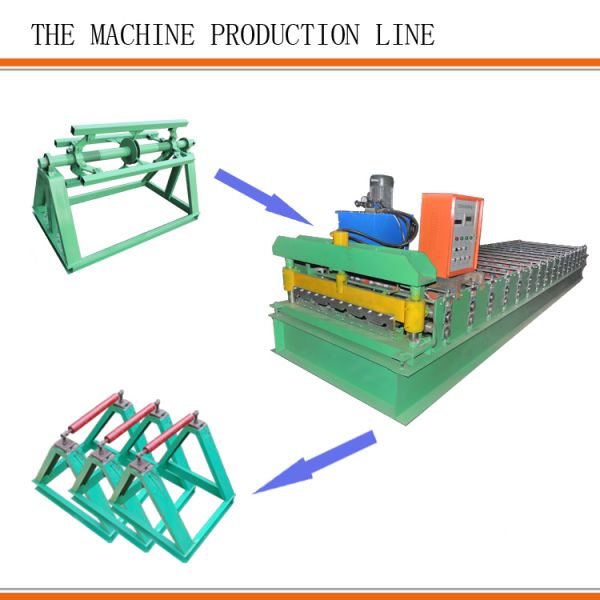

5. The Steel IBR Roof Trapezoidal Profile Sheet Cold Roll Forming Machine 1000 process flow chart and profile drawing for your reference.
